AB60J

Max. working height: 20.1m
Platform capacity: 227kg
Stowed height: 2.51m
Weight: 11,249kg

Add to quote list

Description

The robust and reliable Snorkel AB60J articulating boom lift easily reaches up and over obstacles. Designed tough for the rental industry, it is simple to operate and maintain. Ideal for both maintenance and construction applications, the lift offers versatile performance on all jobsites.

Standard Features

Snorkel Guard™ secondary guarding system
Hydraulic platform rotation
4-wheel drive
Proportional drive, lift & swing
Dual lanyard attachment points
Horn
Foam filled tires
Power line to platform
3.5º tilt alarm & cut out
Drive motion alarm
Flashing amber light
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	20.1m
Max Platform Height	18.1m
Max Working Outreach	13.1m
Clearance Height at Max Outreach	5.94m
Platform Size	2.44m x 0.91m
Overall Width	2.4m
Overall Length	8.87m
Stowed Height	2.51m
Ground Clearance	300mm
Platform Capacity (SWL)	227kg
Max Drive Height	18.1m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	5.1 km/h
Max Drive Speed (Elevated)	0.96 km/h
Jib Length	1.8m
Jib Arc	75º
Platform Rotation	180º
Turret Rotation	360° continuous
Tailswing (Elevated)	0m
Tailswing (Stowed)	1.52m
Raise/Lower Time	125/121 seconds
Gradeability	20%
Inside Turning Radius	5.24m
Outside Turning Radius	6.17m
Tyres	15˝ x 19.5˝ foam filled
Controls	Proportional joystick drive, lift & rotation
Drive System	4 wheel drive
Power Source	Kubota V2403 48kW/65hp diesel – Tier 4 Final
Weight	11,249kg

Options

Special paint colors
Airline to platform
Non-marking tires
AC generator 110V/240V 2kW
Aircraft package
Deluxe aircraft package
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Glazier package
Utility package
Dual fuel
Environmental hydraulic oil
Tool tray
Pipe rack
Personal Fall Arrest System
Snorkel OnSite™ telematics

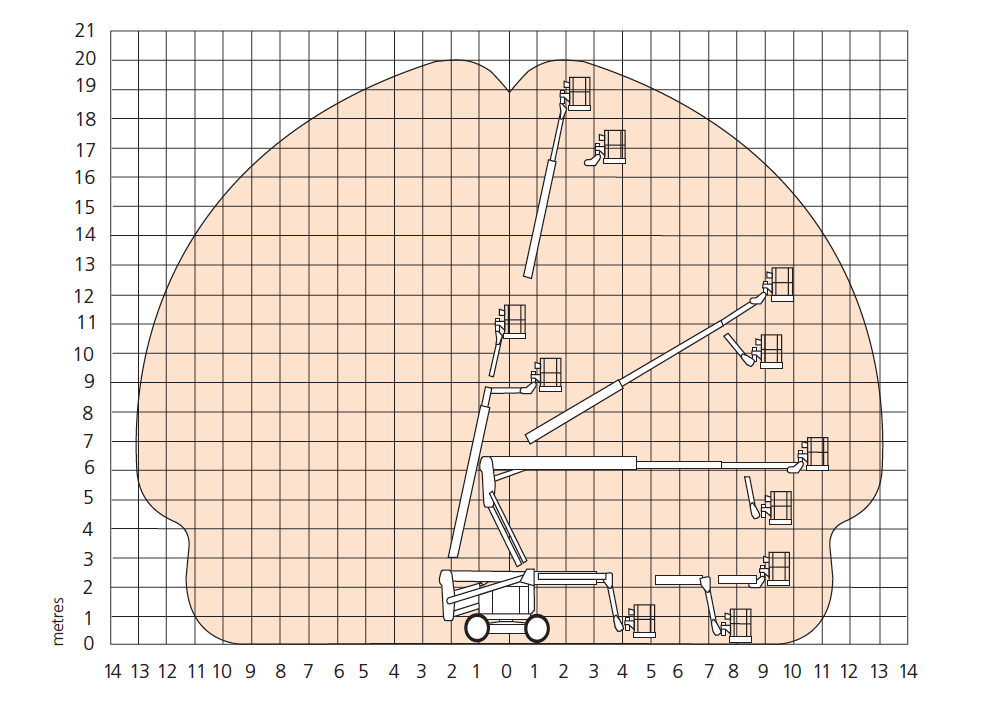

Working Envelope

AB60J-working-envelope

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
