ML12M

Lift height–forks up: 3.8m
Lift height–forks down: 3.3m
Stowed height: 1.59m
Weight: 120kg

Add to quote list

Description

The Snorkel ML12M mini material lift is up to the task. Featuring a shorter mast, this lift easily fits through interior doorways. Built with durable aluminum, the ML12M is robust and reliable for industrial and warehouse applications.

Standard Features

Non-marking transport/loading wheels
Dual handle, two-speed shift-on-the-fly winch
Metal cable pulleys with sealed bearings
Heavy-gauge aluminum extrusions
Heavy duty non-marking casters
Crane attachment point
Cable guard
Mast brake
2 year parts & labor, 5 year structural warranty

Additional information

Lift Height – Forks Up	3.8m
Lift Height – Forks Down	3.3m
Stowed Width	0.77m
Stabiliser Width	1.63m
Stowed Length	0.84m
Operating Length	1.72m
Stowed Height	1.59m
Fork Width (Outside)	0.58m
Fork Length	0.76m
Ground Clearance	60mm
Max Load Capacity (0.36m Load Centre)	318kg
Max Load Capacity (0.61m Load Centre)	200kg
Max Load Capacity (1.07m Load Centre)	84kg
Min Load Height	150mm
Winch (High Speed)	13.1 cranks/m
Winch (Low Speed)	49.2 cranks/m
Weight	120kg

Options

Special paint colors
Adjustable forks
Fork extensions
Boom
Pipe cradle
Load platform
Stabilizers with non-marking swivel casters
Smart latch

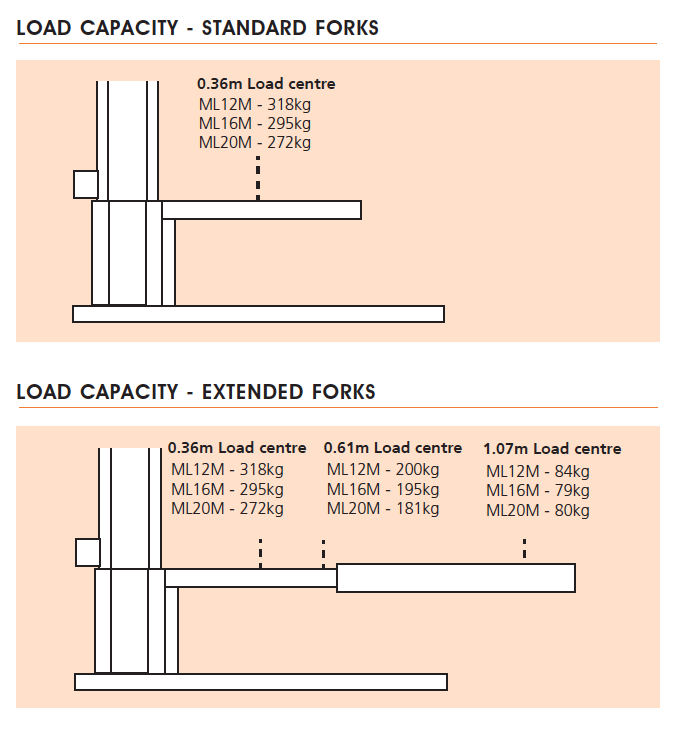

Loading Capacity

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
