S3226E

  • Max. working height: 9.9m
  • Platform capacity: 250kg
  • Stowed height: 2.3m
  • Weight: 2,268kg

Description

The Snorkel S3226E is a brand new 9.9m electric scissor lift from Snorkel which is designed for the rental industry. Built to withstand the toughest conditions, the S3226E also boasts a number of innovative features to improve the operator experience and reduce maintenance time.

Standard Features

  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • Proportional controls, including descent
  • 2 persons indoor
  • Loading pendant
  • Power line to platform
  • Platform overload system
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height

9.9m

Max Platform Height

7.9m

Platform Size (Stowed)

0.72m x 2.14m

Platform Size (Extended)

0.72m x 2.6m

Extension Deck Length

0.91m

Overall Length (With Step)

2.3m

Overall Length (Without Step)

2.26m

Overall Width

0.81m

Stowed Height

2.3m

Min Height (Guardrails Folded)

1.85m

Ground Clearance (Stowed)

66mm

Ground Clearance (Elevated)

19mm

Platform Capacity (SWL)

250kg

Max Drive Height

7.9m

Max Wind Speed

0m/s

Max Drive Speed (Stowed)

3.2 km/h

Max Drive Speed (Elevated)

0.6 km/h

Raise/Lower Time

50 / 56 seconds

Gradeability

25%

Inside Turning Radius

0.76m

Outside Turning Radius

2.36m

Tyres

15 x 4 non-marking rubber

Controls

Proportional

Drive System

2 wheel drive

Power Source

24V DC battery electric

Charger

90 – 240V, 25amp

Weight

2,268kg

Options

  • Special paint colors
  • Airline to platform
  • Aircraft bumpguard package
  • Environmental hydraulic oil
  • Snorkel Guard™ secondary guarding system
  • Snorkel OnSite™ telematics
  • Top rail

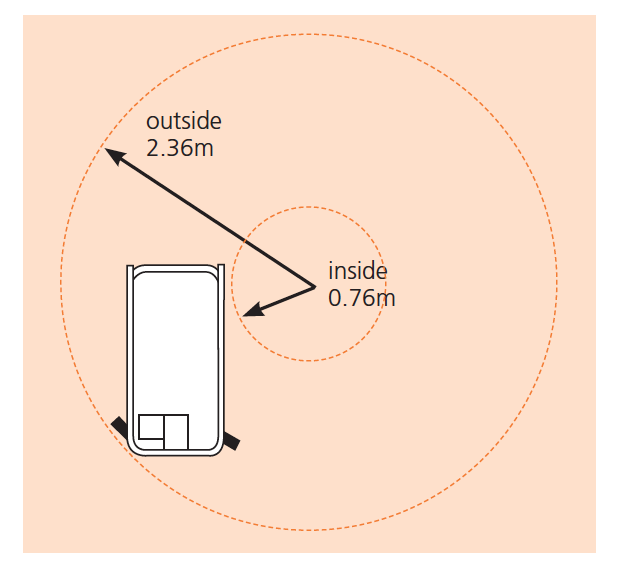

Turning Radius

S3220E/S3226E turning radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
