S3970RTE

  • Max. working height: 13.8m
  • Platform capacity: 350kg
  • Stowed height: 2.95m
  • Weight: 3,790kg

Description

The Snorkel S3970RTE compact rough terrain electric scissor lift delivers dynamic performance. Equipped with long-lasting lithium-ion batteries, this scissor lift offers clean and quiet operation. A compact design makes it easy to maneuver tight areas and powerful 4-wheel drive tackles tough terrain.

Standard Features

  • Two lithium-ion battery systems 11.5kWh
  • 4 wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2000 charging cycles/2 year** lithium battery warranty
  • 2 years parts & labor, 5 year structural warranty

**whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional information

Max Working Height

13.8m

Max Platform Height

11.8m

Platform Size (Stowed)

1.6m x 2.8m

Platform Size (Extended)

1.6m x 4.0m

Deck Extension

1.2m

Overall Width

1.8m

Overall Length

3.4m

Stowed Height

2.95m

Min Height (Guardrails Folded)

2.13m

Ground Clearance

330mm

Platform Capacity (SWL)

350kg

Max Drive Height

11.8m

Max Wind Speed

12.5m/s

Max Drive Speed (Stowed)

4.5 km/h

Max Drive Speed (Elevated)

0.5km/h

Raise/Lower Time

50/60 seconds

Gradeability

35%

Max Outrigger Leveling (Front to Rear)

Max Outrigger Leveling (side to side)

10º

Inside Turning Radius

2.7m

Outside Turning Radius

5.0m

Tyres

27 x 10.5 – 15 foam filled, non-marking

Controls

Proportional joystick

Drive System

4 wheel drive

Power Source

Li-ion battery with integrated BMS

Operating temperature

(-) 25º C to (+) 60º C

Charger

High frequency smart on-board 50A battery charger

Motor

AC electric motor

Weight

3,790kg

Options

  • Special paint colors
  • Additional 111Ah battery system
  • Hydraulic generator 110V 2kW
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

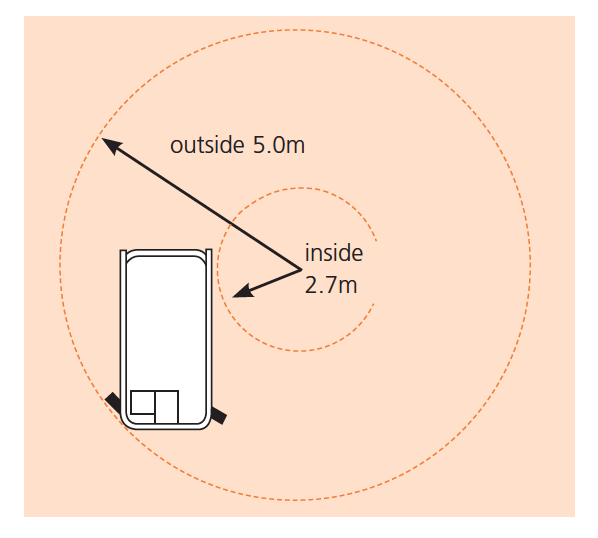

Turning Radius

Snorkel S2770RTE/S3370RTE/S3970RTE turning radius

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and BLUELIFT operators manual for detailed instructions on the proper use and maintenance.
