TB126J

Max. working height: 40.4m
Platform capacity: 227kg
Stowed height: 3.2m
Weight: 19,000kg

Add to quote list

Description

The Snorkel TB126J is the largest telescopic boom lift in the Snorkel product range. Designed to lift 272kg to a working height of 40.4m, it is equipped with a jib boom for added flexibility, high performance 4 wheel drive, a hydraulic powered extending rear axle and an envelope management system.

Standard Features

Snorkel Guard™ secondary guarding system
2.0m 135º jib
4-wheel drive, braking & fixed front steering
Hydraulic platform rotation
360º continuous turntable rotation
Hydraulic extended rear axles w/ boom interlocks
Built-in jack for raising chassis
Flashing amber light
Proportional drive, boom lift, swing, extend + jib (if equipped)
Dual lanyard attachment points
Foam filled tires
Power line to platform
3.5º tilt & cut out
2 year parts & labor, 5 year structural warranty

Additional information

Max Working Height	40.4m
Max Platform Height	38.4m
Max Working Outreach	19.2m
Platform Size	2.44m x 0.91m
Overall Width	2.6m
Operational Width	3.9m
Overall Length	13.6m
Stowed Height	3.2m
Ground Clearance	330mm
Platform Capacity (SWL)	227kg
Max Drive Height	38.4m
Max Wind Speed	12.5m/s
Max Drive Speed (Stowed)	4.6 km/h
Max Drive Speed (Elevated)	0.24 km/h
Jib Length	2.0m
Jib Arc	135º (+70º/-65º)
Platform Rotation	180º
Turret Rotation	360° continuous
Tailswing (Axles Retracted)	2.04m
Tailswing (Axles Extended)	1.38m
Raise/Lower Time	208/215 seconds
Gradeability	30%
Inside Turning Radius	5.8 m
Outside Turning Radius	10.1m
Tyres	445-65 D22.5 foam filled lug
Controls	Proportional joystick
Drive System	4 wheel drive
Power Source	Kubota V2403 48kW/59hp diesel – Tier 4 Final
Weight	19,000kg

Options

Special paint colors
Airline to platform
AC generator 110V/2.5kW
Cold weather package
Extreme cold weather package
Extreme environment package
Light package
Tow kit
Glazier package
Utility package
12kW generator package
12kW generator/welder package
Environmental hydraulic oil
Tool tray
Non-marking tires
Snorkel OnSite™ telematics
Personal fall arrest system

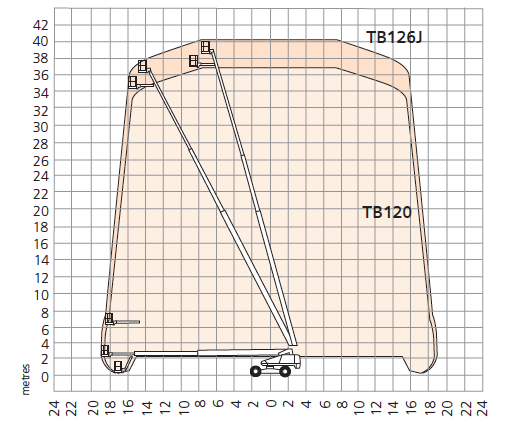

Working Envelope

TB120-TB126J-working-environment

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Argentina provides nationwide coverage for any warranty or technical support required in Italy. For more information, please contact us.
