xr944

XR944-B

4,082kg Capacity
13.41m Lift Height
8.8m Forward Reach
74 hp HT (Tier 4F) Engine

Add to quote list

Description

The ideal balance of reach, height, capacity, and maneuverability.

Additional information

Class Carriage	B
Max Lift Capacity	4,082kg
Max Lift Height	13.41m
Forward Reach	8.8m
Frame Leveling L/R	11°
Machine Weight	13,022kg
Engine	Cummins 3.8L 74 hp HT (Tier 4F)
Axles	ZF MST3055 / 3060
Transmission	ZF 3WG94
Fuel Capacity	189L
Tires	Foam Filled 15.5 x 25
Hydraulic Flow (Per Min)	185.4L
Hydraulic Pressure	241.3bar
Hydraulic Oil Capacity	234.6L
Length to Fork Face	6.4m
Width	2.56m
Height	2.43m
Wheel Base	3.18m
Ground Clearance	419mm
Turning Radius	3.65m

Options

Cab Options

Options

Pintle hook
Flashing amber strobe
Boom work lights – LED
Rear cab work lights – LED
Tail, turn, running, brake lights
Enclosed cab clear glass
Machine lift points (qty 4)
Swivel hook
Steel fenders (qty 4)
Boom maintenance stand
Cable reel
Special paint (excluding cab)
Special paint (including cab)
Flashing green strobe
Back up camera
Top curved cab glass
Battery blanket
Hydraulic tank heater
Cab heater (aux)
Cold weather synthetic oil
Fuel cap – locking
Outriggers

Carriage Options

Carriage 48″ fixed
Carriage 48″ fork positioning
Carriage 48″ side tilt – 8,000 lbs
Carriage 52″ swing – 8,000 lbs
Carriage 60″ fixed
Carriage 60″ fork positioning
Carriage 72″ fixed
Carriage 72″ fork positioning
Carriage 72″ side tilt – 8,000 lbs
Carriage 72″ side tilt – 12,000 lbs
Carriage 72″ swing – 12,000 lbs
Carriage 72” – Rake
Carriage 96″ fixed

*maximum lift capacity on this machine is limited to 8,000 lbs.

Fork Tines Options

4″ x 2.25″ x 48″ (quantity 2)
4″ x 2.25″ x 60″ (quantity 2)
5″ x 2.25″ x 48″ (quantity 2)
5″ x 2.25″ x 60″ (quantity 2)
6″ x 2″ x 72″ (quantity 2)
6″ x 2″ x 96″ (quantity 2)
7″ x 1.75″ x 48″ (quantity 2)
7″ x 1.75″ x 60″ (quantity 2)
7″ x 2.25″ x 60″ (quantity 2)
6″ x 2.25″ x 60″ (quantity 2)
6″ x 2″ x 48″ full taper (quantity 2)
2″ x 2″ x 48″ block (quantity 2)
2″ x 3″ x 48″ block (quantity 2)

Tire Options

Attachments

Load Chart

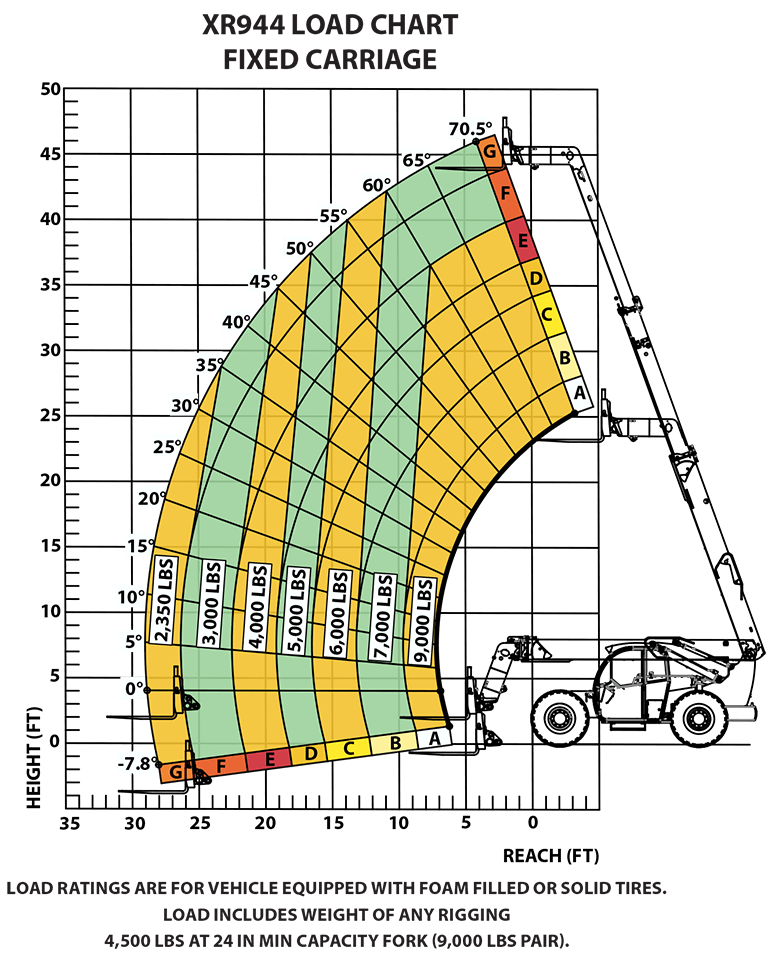

XR944-B Load Chart

Warranty

All Xtreme products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Xtreme products, we offer the industry-leading 10-5-2 warranty on all Xtreme telehandlers:

For more information, contact your sales representative.
